Urinalysis: Step-by-step Urine Examination in the laboratory

Urinary system

Urinary system is made up of pair of kidneys and urinary tracts which include (two ureters, urinary bladder and urethra). Each kidney contains 1.3 million urinary units called nephrons. Each nephron consist of glomerulus and urinary ducts (Bowman’s capsule, proximal convoluted tubule, Henley loop, distal convoluted tubule and collecting duct).
Nephrons responsible of urine formation through three sequence process:

• Glomerular filtration, the Glomerular filtration rate(GFR) reach 180 liter  /day.
• Re-absorption
• Secretion

The kidneys extract the soluble wastes from the blood stream, as well as excess water, sugars, and a variety of other compounds. The resulting urine contains high concentrations of urea and other substances, including toxins. Urine flows from the kidney through the ureter, bladder, and finally the urethra before passing from the body.

Urination:

It is a voluntary process that depends on person’s choice to the suitable time and place to empty the urinary bladder from storage urine, without pain.

Disturbances in urination include:

• Painful urination, frequency, Urgency. Because of microbial UTI.
• Impairment of urine flow, hesitancy, drubbing urine, incomplete emptying. Because of urinary bladder obstruction.
• Urinary retention, a sign of benign prostate enlargement (hypertrophy), urinary incontinence (enuresis) due to dysfunction of bladder muscles or sphincter muscles.

Urinary tract infection (UTI):

A urinary tract infection happens when bacteria and white blood cells are present in the urine of a patient with symptoms of infection of the urethra, urinary bladder, or the kidney.

• Bacteriuria:  occurs when bacteria are present in the urine;
• pyuria: occurs when white blood cells are present in the urine.

The lower urinary tract includes the urethra (urethritis) and urinary bladder (cystitis).

The upper urinary tract includes the ureters and kidneys, infection in the upper urinary tract called (pyelonephritis). The bacteria that cause urinary tract infections are usually of fecal origin (e.g., Escherichia coli).

Etiology:

The most common cause of urinary tract infections (i.e., urethritis, cystitis, and pyelonephritis) is E coli. Staphylococcus saprophyticus is the second most common cause of these infections in females between the ages of 13 and 40. In complicated cases of urinary tract infections such as those resulting from anatomic obstructions or from catheterization,

The most common causes are

• E. coli,
• Klebsiella pneumoniae,
• Proteus mirabilis,
• Enterococcus,
• Pseudomonas aeruginosa.

Manifestations:

• Urethritis: is an infection of the urethra that causes pain and discomfort during voiding (dysuria)
• Cystitis: is an infection of the urinary bladder. Signs and symptoms of cystitis include urgency and frequency of urination, voiding small volumes of urine, and supra pubic tenderness just before or immediately after voiding.
• Pyelonephritis: is an infection of the lower urinary tract ascends the ureters to enter the kidneys, the signs and symptoms include fever, flank pain and tenderness, cost vertebral angle tenderness, and nausea and vomiting. Bacteria that gain access to the kidney can cause damage by production of polysaccharide, hemolysins, and endotoxin. Polysaccharide inhibits phagocytosis, hemolysins can directly cause tissue damage and endotoxin contributes to inflammation and damage of renal parenchyma. Endotoxin can gain entry into the bloodstream and induce white blood cells into the bloodstream to produce interleukin 1 (IL-1), which causes fever. Fever is seen only in patients who have pyelonephritis and is not seen in patients with only urethritis and cystitis.

Kidney stones can serve as a location in which bacteria can escape antibiotics and cause recurrent urinary tract infections. Proteus can cause stones to form when it produces an enzyme called urease, which can catalyze the breakdown of urea to ammonia and carbon dioxide. The ammonia that results from this reaction will increase the pH of urine and cause formation of kidney stones.

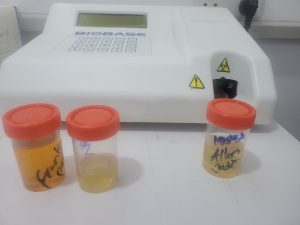

Urinalysis procedure

Interpretation

• Yellow to amber (Normal); the color comes primarily from the presence of urobilin. Urobilin is a final waste product resulting from the breakdown of heme from hemoglobin during the destruction of aging blood cells.
• Colorless to pale yellow; dilute urine with low specific gravity and polyuria.
• Dark yellow or yellow brown; concentrated urine with a high specific gravity and small quantity.
• Yellow brown or greenish yellow; yellow green foam when urine is shaken Urobilinoids – chromagon derived from heme green biliverdin yellow-brown-bilirubin and urobilin.
• Cloudy; hematuria (clearer after centrifugation).
• Translucent; hemoglobinuria.
• Brown to brownish black; hemoglobin up on standing bile large amounts.
• Green; bile biliverdin
• Red to pink; phenothiazine (beet root)
• Blue; medication contain methylene blue or food with blue dyes.

Transparency (clarity):

• Clear – freshly voided urine is clear.
• Blood – red to brown color and smoky.
• Leukocytes – may produce milky, ropy appearance if large number.
• Bacteria – produce a uniform turbidity if in large number; the turbidity doesn’t settle out and cannot be removed by filtration.
• Cloudy – not necessarily pathological as many samples may become cloudy.
• Epithelial cells – present in large numbers.

Mucus:

Crystals:

Salt compounds organized in geometrical shapes and looks like crystals, important in stones formation (cysteine crystals and oxalate crystals).

• Amorphous urate – white or pink cloud in acid urine
• Amorphous phosphate – white cloud in alkaline urine, etc.

Specific gravity (SG):

• Determined by refractometer and indicator paper stripes. Normal value in Man 1.010 – 1.030 (Average normal = 1.025)prepending on SG the urine will be diluted (SG˂ 1.002) or concentrated (SG˃1.065) depend on the solvents in urine.SG used to determine the kidney efficiency keeping water balance in urine.

Odor:

• Normal odor – aromatic or acetone
• Abnormal odor – aromatic odor of ketone bodies (sweet fruit odor) as in starvation and diabetes. In UTI the odor of urine is bad smell.
• Foam:

Shake the sample and observe:

• If the amount of foam produced is in excess and slow to disappear – proteinuria
• If the color of the foam great – yellow or brown – bile pigments
• If the color of the foam red to brown – hemoglobinuria



Microscopic Examination of Urine Sample

It is of great clinical importance and should never been omitted. Important structure to be include: casts, erythrocytes, leukocytes, epithelial cells, budding yeasts, protozoa and bacteria.Casts: Cylindrical bodies performed in distal collecting tubules from RBCs or WBCs or fatty compounds or waxes.
Diagnosis of cast type aid in diagnosis of the disease.

• Types of casts: Hyaline casts, density granulated casts, finely granulated casts, red cell casts (haematouria), and white cell casts (inflammation), wax casts, fat casts, and epithelial casts.
• Erythrocytes: and leukocytes present in urine in case of UTI, diseases, inflammation.
• Epithelial cells: presence normally due to sloughing the lining layer of urinary tubules, bladder and urethra or because of some renal diseases.
• Budding yeasts: Candida albicans, found in diabetes patients urine because of the low PH and the presence of sugar necessary for the growth.
• Protozoa: like Trichomonas vaginalis that infect the vagina in women and urethra in men and cause trichomoniasis.

Chemical Examination of Urine:

• –PH of urine The normal hydrogen ion (pH) concentration, in the urine (5-8) depends on the type of diet. Vegetable diet, citrus fruits (also bacterial infections) produce alkaline urine, while high protein diet (also blood acidosis where PH˂7.35, some microbial infections, ketones elevation due to diabetes or aspirin intake) produce acidic urine.
  PH measured by paper strip or pH meter.
• –Proteins of urine: a little quantity, of protein are found normally in urine (150 mg/day)any access in protein called proteinuria which is an indication for many diseases like kidney diseases , fever and pregnancy.

Types of proteins in urine:

Albumin: is the first protein appearing in urine due to its low molecular weight and size (albuminuria), this protein appears in Diabetes and hypertension.
Immunoglobulins: appear in urine due to inflammations and microbial infections
Hemoglobin: found in urine due to blood haemolysis.

Test: (Robert’s test)

Principle:  Precipitation of protein by strong acid.

A positive test is indicated by a white ring at the zone of concentration, which should be read against a dark back ground and reported as:

Negative – No ring at the zone of concentration
Note: In many clinical laboratories, Robert’s test is routine method as it is simple, quick and easy to read even when only a small amount of protein presents.

Glucose in urine: No glucose is present in the urine normally which passes glomerular filter, because it is completely absorbed in the tubules. It present when the blood glucose level elevated to(180mg/ml) which is called renal threshold, when blood glucose elevated the glucose present in urine as in diabetes.

Glucose Test
Method: Qualitative method (Benedicts test)
Principle: Reducing sugars present in the urine react with the copper sulphate to reduce the cupric ions to cuprous oxide giving a Color change from blue (negative) to green, yellow and red depending on the amount of reducing substances present

Acetone (Ketone body) (ketones): The ketone bodies include acetone, acetoacetic acid (diacetic acid) and betahydroxybutric acid. A state in which these substances are present in increased amount in the blood and urine is called ketosis. Acetoacetic acid and beta hydroxyl butyric acid from which acetone is derived is normal intermediate product of fat metabolism. When greater amounts of fatty acids are utilized with the production of more acetoacetic acid and beta-hydroxybutyric acid can be oxidized by the tissues. These bodies accumulate in the blood and are excreted in the urine (ketonuria) This bodies present in urine in starvation or low blood glucose levels.

Urine Culture:

Urine is the specimen most frequently submitted for culture. The most common sites of urinary tract infection (UTI) are the urinary bladder (cystitis) and the urethra. From these sites the infection may ascend into the ureters (ureteritis) and subsequently involve the kidney (pyelonephritis). Females are more prone to infection of the urinary tract than are males. In both males and females, UTI may be asymptomatic, acute, or chronic.

• Asymptomatic infection can be diagnosed by culture.
• Acute UTI is more frequently seen in females of all ages; these patients are usually treated on an outpatient basis and are rarely admitted to hospital.
• Chronic UTI in both males and females of all ages is usually associated with an underlying disease (e.g. pyelonephritis, prostatic disease, or congenital anomaly of the genitourinary tract) and these patients are most often hospitalized.

Since urine itself is a good culture medium, all specimens should be processed by the laboratory within 2 hours of collection, or be kept refrigerated at 4C until delivery to the laboratory and processed no longer than 18 hours after collection.

The examination procedure includes the following steps:

1. Examination of a Gram-stained smear. ( for the presence or absence of bacteria, polymorphonuclear leukocytes, and squamous epithelial cells). One or more bacterial cells per oil-immersion field usually implies that there are 105 or more bacteria per milliliter in the specimen. The presence of one or more leukocytes per oil-immersion field is a further indication of UTI.

2. A screening test for significant bacteriuria. The absence of leukocytes and bacteria in a Gram-stained smear of a clean catch urine sample prepared as described above is good evidence that the urine is not infected. A urine specimen that is “negative” on careful examination of the Gram-stained smear does not need to be cultured.

An alternative simple and effective screening test is the test strip for leukocyte esterase/nitrate reduction. The strip is dipped into the urine specimen as instructed in the package literature. Any pink colour is a positive reaction indicating the presence of leukocyte esterase and/or bacteria in excess of 105 per ml. Urine samples that are positive in the screening test should be cultured as soon as possible to prevent possible overgrowth by no significant bacteria. If the strip does not develop a pink colour it is interpreted as a negative screening test, is so reported, and no culture is indicated. The test strip may not be sensitive enough to detect bacterial counts of less than 105 per ml of urine.

3. A definitive culture for urine specimens found to be positive in the screening test, and for all specimens obtained by cystoscopy, suprapubic bladder puncture (SBP), or catheterization.

4. Susceptibility tests on clinically significant bacterial isolates should only be performed on well-isolated colonies of similar appearance. Susceptibility tests are generally more important on cultures obtained from patients who are hospitalized or have a history of recurring UTI.

Conclusion

Urinalysis is an effective screening tool that can be used to detect systemic diseases and infections. There are a variety of methods of collecting urine specimens and it is essential to ensure that contamination is limited to reduce the potential for inaccurate results. Reagent strips are a quick and easy method for testing urine and can provide valuable information about a patient’s condition
